WAGMI Subnet

This is one of the first cases of using Avalanche Subnets as a proving ground for changes in a production VM (Coreth). Many underestimate how useful the isolation of Subnets is for performing complex VM testing on a live network (without impacting the stability of the primary network).

We created a basic WAGMI Explorer https://subnets-test.avax.network/wagmi that surfaces aggregated usage statistics about the Subnet.

• SubnetID: 28nrH5T2BMvNrWecFcV3mfccjs6axM1TVyqe79MCv2Mhs8kxiY
• ChainID: 2ebCneCbwthjQ1rYT41nhd7M76Hc6YmosMAQrTFhBq8qeqh6tt

Network Parameters​

• NetworkID: 11111
• ChainID: 11111
• Block Gas Limit: 20,000,000 (2.5x C-Chain)
• 10s Gas Target: 100,000,000 (~6.67x C-Chain)
• Min Fee: 1 Gwei (4% of C-Chain)
• Target Block Rate: 2s (Same as C-Chain)

The genesis file of WAGMI can be found here.

Adding WAGMI to Core​

• Network Name: WAGMI
• RPC URL: [https://subnets.avax.network/wagmi/wagmi-chain-testnet/rpc]
• WS URL: wss://subnets.avax.network/wagmi/wagmi-chain-testnet/ws
• Chain ID: 11111
• Symbol: WGM
• Explorer: [https://subnets.avax.network/wagmi/wagmi-chain-testnet/explorer]

Case Study: WAGMI Upgrades​

This case study uses WAGMI Subnet upgrade to show how a network upgrade on an EVM-based (Ethereum Virtual Machine) Subnet can be done simply, and how the resulting upgrade can be used to dynamically control fee structure on the Subnet.

Introduction​

Subnet-EVM aims to provide an easy to use toolbox to customize the EVM for your blockchain. It is meant to run out of the box for many Subnets without any modification. But what happens when you want to add a new feature updating the rules of your EVM?

Instead of hard coding the timing of network upgrades in client code like most EVM chains, requiring coordinated deployments of new code, Subnet-EVM v0.2.8 introduces the long awaited feature to perform network upgrades by just using a few lines of JSON in a configuration file.

Network Upgrades: Enable/Disable Precompiles​

Detailed description of how to do this can be found in Customize a Subnet tutorial. Here's a summary:

1. Network Upgrade utilizes existing precompiles on the Subnet-EVM:
   • ContractDeployerAllowList, for restricting smart contract deployers
   • TransactionAllowList, for restricting who can submit transactions
   • NativeMinter, for minting native coins
   • FeeManager, for configuring dynamic fees
   • RewardManager, for enabling block rewards
2. Each of these precompiles can be individually enabled or disabled at a given timestamp as a network upgrade, or any of the parameters governing its behavior changed.
3. These upgrades must be specified in a file named upgrade.json placed in the same directory where config.json resides: {chain-config-dir}/{blockchainID}/upgrade.json.

Preparation​

To prepare for the first WAGMI network upgrade, on August 15, 2022, we had announced on Twitter and shared on other social media such as Discord.

For the second upgrade, on February 24, 2024, we had another announcement on X.

Deploying upgrade.json​

The content of the upgrade.json is:

{
  "precompileUpgrades": [
    {
      "feeManagerConfig": {
        "adminAddresses": ["0x6f0f6DA1852857d7789f68a28bba866671f3880D"],
        "blockTimestamp": 1660658400
      }
    },
    {
      "contractNativeMinterConfig": {
        "blockTimestamp": 1708696800,
        "adminAddresses": ["0x6f0f6DA1852857d7789f68a28bba866671f3880D"],
        "managerAddresses": ["0xadFA2910DC148674910c07d18DF966A28CD21331"]
      }
    }
  ]
}

With the above upgrade.json, we intend to perform two network upgrades:

1. The first upgrade is to activate the FeeManager precompile:
   • 0x6f0f6DA1852857d7789f68a28bba866671f3880D is named as the new Admin of the FeeManager precompile.
   • 1660658400 is the Unix timestamp for Tue Aug 16 2022 14:00:00 GMT+0000 (future time when we made the announcement) when the new FeeManager change would take effect.
2. The second upgrade is to activate the NativeMinter precompile:
   • 0x6f0f6DA1852857d7789f68a28bba866671f3880D is named as the new Admin of the NativeMinter precompile.
   • 0xadFA2910DC148674910c07d18DF966A28CD21331 is named as the new Manager of the NativeMinter precompile. Manager addresses are enabled after Durango upgrades which occurred on February 13, 2024.
   • 1708696800 is the Unix timestamp for Fri Feb 23 2024 14:00:00 GMT+0000 (future time when we made the announcement) when the new NativeMinter change would take effect.

Detailed explanations of feeManagerConfig can be found in here, and for the contractNativeMinterConfig in here.

We place the upgrade.json file in the chain config directory, which in our case is ~/.avalanchego/configs/chains/2ebCneCbwthjQ1rYT41nhd7M76Hc6YmosMAQrTFhBq8qeqh6tt/. After that, we restart the node so the upgrade file is loaded.

When the node restarts, AvalancheGo reads the contents of the JSON file and passes it into Subnet-EVM. We see a log of the chain configuration that includes the updated precompile upgrade. It looks like this:

INFO [02-22|18:27:06.473] <2ebCneCbwthjQ1rYT41nhd7M76Hc6YmosMAQrTFhBq8qeqh6tt Chain> github.com/ava-labs/subnet-evm/core/blockchain.go:335: Upgrade Config: {"precompileUpgrades":[{"feeManagerConfig":{"adminAddresses":["0x6f0f6da1852857d7789f68a28bba866671f3880d"],"blockTimestamp":1660658400}},{"contractNativeMinterConfig":{"adminAddresses":["0x6f0f6da1852857d7789f68a28bba866671f3880d"],"managerAddresses":["0xadfa2910dc148674910c07d18df966a28cd21331"],"blockTimestamp":1708696800}}]}

We note that precompileUpgrades correctly shows the upcoming precompile upgrades. Upgrade is locked in and ready.

Activations​

When the time passed 10:00 AM EDT August 16, 2022 (Unix timestamp 1660658400), the upgrade.json had been executed as planned and the new FeeManager admin address has been activated. From now on, we don't need to issue any new code or deploy anything on the WAGMI nodes to change the fee structure. Let's see how it works in practice!

For the second upgrade on February 23, 2024, the same process was followed. The upgrade.json had been executed after Durango, as planned, and the new NativeMinter admin and manager addresses have been activated.

Using Fee Manager​

The owner 0x6f0f6DA1852857d7789f68a28bba866671f3880D can now configure the fees on the Subnet as they see fit. To do that, all that's needed is access to the network, the private key for the newly set manager address and making calls on the precompiled contract.

We will use Remix online Solidity IDE and the Core Browser Extension. Core comes with WAGMI network built-in. MetaMask will do as well but you will need to add WAGMI yourself.

First using Core, we open the account as the owner 0x6f0f6DA1852857d7789f68a28bba866671f3880D.

Then we connect Core to WAGMI, Switch on the Testnet Mode in Advanced page in the hamburger menu:

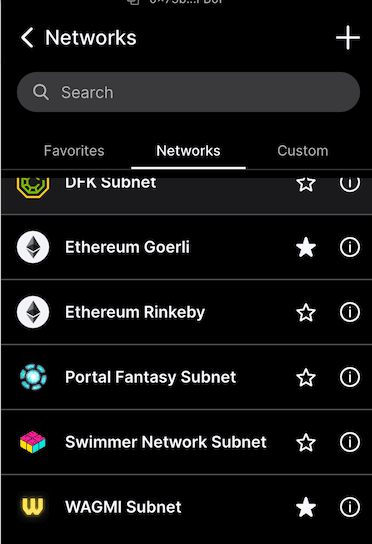

And then open the Manage Networks menu in the networks dropdown. Select WAGMI there by clicking the star icon:

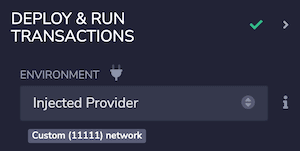

We then switch to WAGMI in the networks dropdown. We are ready to move on to Remix now, so we open it in the browser. First, we check that Remix sees the extension and correctly talks to it. We select Deploy & run transactions icon on the left edge, and on the Environment dropdown, select Injected Provider. We need to approve the Remix network access in the Core browser extension. When that is done, Custom (11111) network is shown:

Good, we're talking to WAGMI Subnet. Next we need to load the contracts into Remix. Using 'load from GitHub' option from the Remix home screen we load two contracts:

• IAllowList.sol
• and IFeeManager.sol.

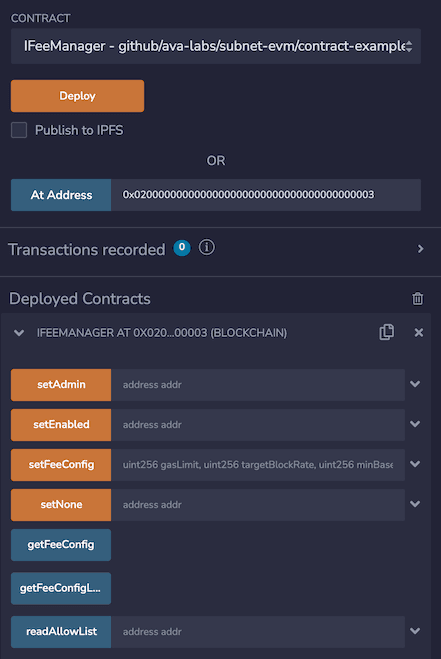

IFeeManager is our precompile, but it references the IAllowList, so we need that one as well. We compile IFeeManager.sol and use deployed contract at the precompile address 0x0200000000000000000000000000000000000003 used on the Subnet.

Now we can interact with the FeeManager precompile from within Remix via Core. For example, we can use the getFeeConfig method to check the current fee configuration. This action can be performed by anyone as it is just a read operation.

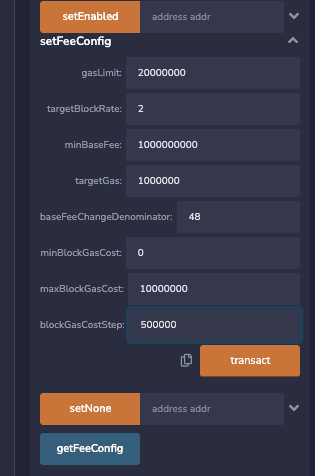

Once we have the new desired configuration for the fees on the Subnet, we can use the setFeeConfig to change the parameters. This action can only be performed by the owner 0x6f0f6DA1852857d7789f68a28bba866671f3880D as the adminAddress specified in the upgrade.json above.

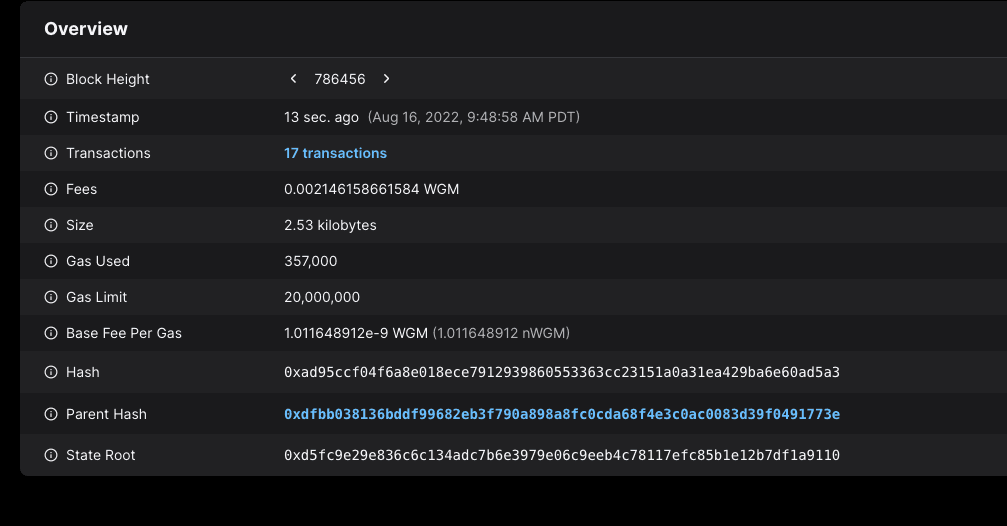

When we call that method by pressing the transact button, a new transaction is posted to the Subnet, and we can see it on the explorer:

Immediately after the transaction is accepted, the new fee config takes effect. We can check with the getFeeCofig that the values are reflected in the active fee config (again this action can be performed by anyone):

That's it, fees changed! No network upgrades, no complex and risky deployments, just making a simple contract call and the new fee configuration is in place!

Using NativeMinter​

For the NativeMinter, we can use the same process to connect to the Subnet and interact with the precompile. We can load INativeMinter interface using 'load from GitHub' option from the Remix home screen with following contracts:

• IAllowList.sol
• and INativeMinter.sol.

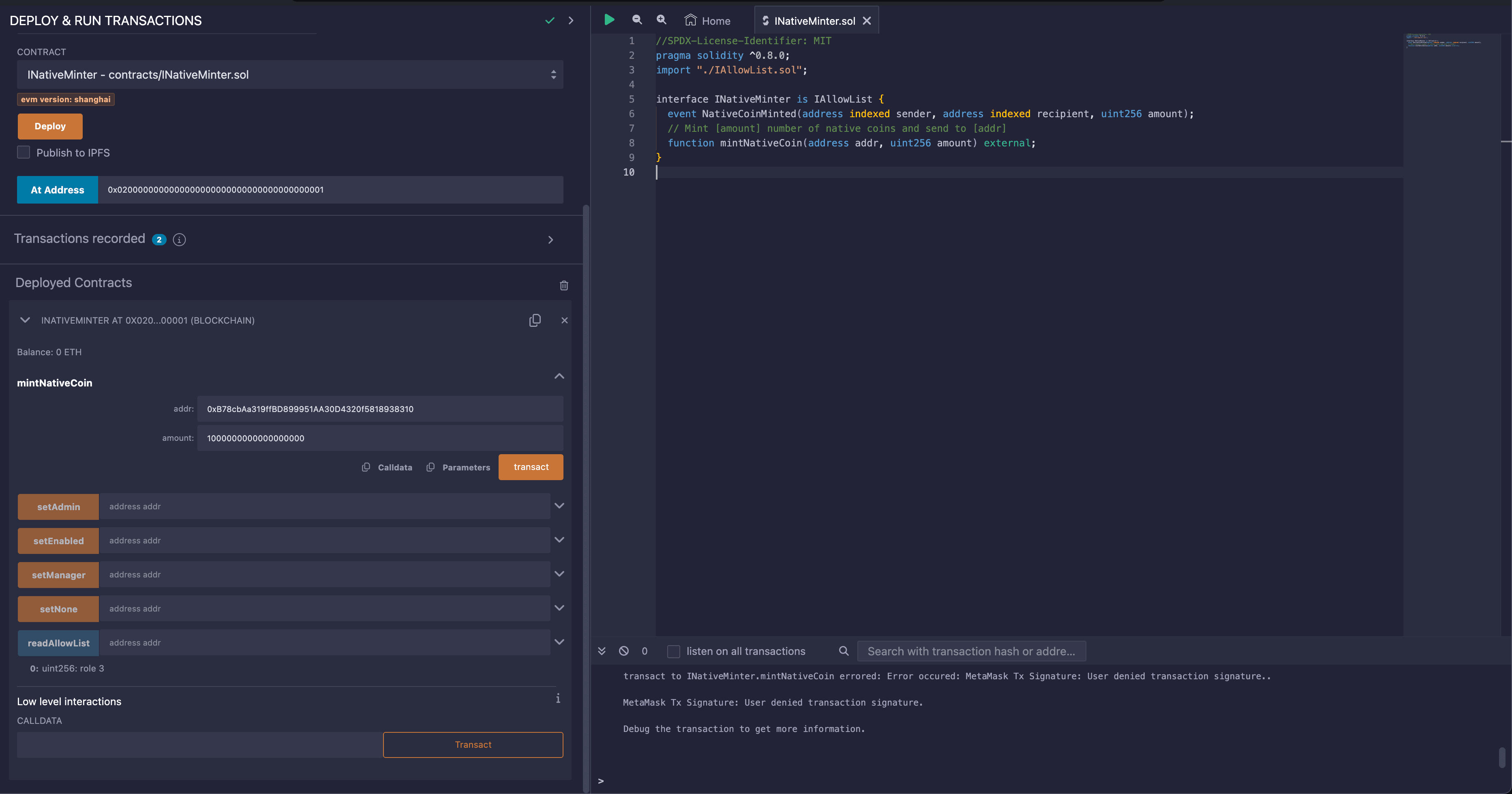

We can compile them and interact with the deployed contract at the precompile address 0x0200000000000000000000000000000000000001 used on the Subnet.

The native minter precompile is used to mint native coins to specified addresses. The minted coins is added to the current supply and can be used by the recipient to pay for gas fees. For more information about the native minter precompile see here.

mintNativeCoin method can be only called by enabled, manager and admin addresses. For this upgrade we have added both an admin and a manager address in upgrade.json above. The manager address was available after Durango upgrades which occurred on February 13, 2024. We will use the manager address 0xadfa2910dc148674910c07d18df966a28cd21331 to mint native coins.

When we call that method by pressing the transact button, a new transaction is posted to the Subnet, and we can see it on the explorer:

As a result of this transaction, the native minter precompile minted a new native coin (1 WGM) to the recipient address 0xB78cbAa319ffBD899951AA30D4320f5818938310. The address page on the explorer here shows no incoming transaction; this is because the 1 WGM was directly minted by the EVM itself, without any sender.

Conclusion​

Network upgrades can be complex and perilous procedures to carry out safely. Our continuing efforts with Subnets is to make upgrades as painless and simple as possible. With the powerful combination of stateful precompiles and network upgrades via the upgrade configuration files we have managed to greatly simplify both the network upgrades and network parameter changes. This in turn enables much safer experimentation and many new use cases that were too risky and complex to carry out with high-coordination efforts required with the traditional network upgrade mechanisms.

We hope this case study will help spark ideas for new things you may try on your own. We're looking forward to seeing what you have built and how easy upgrades help you in managing your Subnets! If you have any questions or issues, feel free to contact us on our Discord. Or just reach out to tell us what exciting new things you have built!
